Available Variants
26 variants available
| Max Pressure | Size (inch) | Article No | Description | Screws (Metric) | Screws (UNC) | OR Type | Weight |
|---|---|---|---|---|---|---|---|

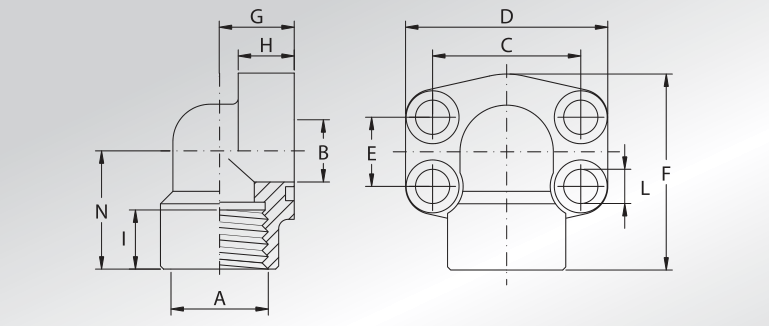

| 345 | 1/2" | AFS08090G | Dimensions: A: 1/2" GAS | B: 13 | C: 38,10 | D: 54 | E: 17,48 | F: 60 | G: 20 | H: 16 | I: 19 | L: 9 | N: 37 | M8x30 | 5/16"x1"1/4 | 4075 | 0,28 |
| 345 | 1/2" | AFS08090G038 | Dimensions: A: 3/8" GAS | B: 13 | C: 38,10 | D: 54 | E: 17,48 | F: 60 | G: 20 | H: 16 | I: 19 | L: 9 | N: 37 | M8x30 | 5/16"x1"1/4 | 4075 | 0,29 |
| 345 | 3/4" | AFS10090G | Dimensions: A: 3/4" GAS | B: 19 | C: 47,63 | D: 65 | E: 22,23 | F: 63 | G: 24 | H: 18 | I: 19 | L: 11 | N: 38 | M10x35 | 3/8"x1"1/2 | 4100 | 0,45 |
| 345 | 3/4" | AFS10090G012 | Dimensions: A: 1/2" GAS | B: 19 | C: 47,63 | D: 65 | E: 22,23 | F: 63 | G: 24 | H: 18 | I: 19 | L: 11 | N: 38 | M10x35 | 3/8"x1"1/2 | 4100 | 0,48 |
| 345 | 1" | AFS10290G | Dimensions: A: 1" GAS | B: 25 | C: 52,37 | D: 70 | E: 26,19 | F: 70 | G: 28 | H: 19 | I: 20 | L: 11 | N: 43 | M10x35 | 3/8"x1"1/2 | 4131 | 0,56 |
| 345 | 1" | AFS10290G034 | Dimensions: A: 3/4" GAS | B: 25 | C: 52,37 | D: 70 | E: 26,19 | F: 70 | G: 28 | H: 19 | I: 19 | L: 11 | N: 43 | M10x40 | 3/8"x1"1/2 | 4131 | 0,60 |
| 276 | 1"1/4 | AFS10490G | Dimensions: A: 1"1/4 GAS | B: 32 | C: 58,72 | D: 79 | E: 30,18 | F: 85 | G: 34 | H: 21 | I: 22 | L: 11,5 | N: 51 | M10x40 | 7/16"x1"3/4 | 4150 | 0,89 |
| 276 | 1"1/4 | AFS10490G100 | Dimensions: A: 1" GAS | B: 32 | C: 58,72 | D: 79 | E: 30,18 | F: 85 | G: 34 | H: 21 | I: 20 | L: 11,5 | N: 51 | M10x40 | 7/16"x1"3/4 | 4150 | 0,92 |
| 207 | 1"1/2 | AFS10690G | Dimensions: A: 1"1/2 GAS | B: 38 | C: 69,85 | D: 93 | E: 35,71 | F: 95 | G: 38 | H: 25 | I: 25 | L: 13,5 | N: 56 | M12x45 | 1/2"x1"3/4 | 4187 | 1,18 |
| 207 | 1"1/2 | AFS10690G114 | Dimensions: A: 1"1/4 GAS | B: 38 | C: 69,85 | D: 93 | E: 35,71 | F: 95 | G: 38 | H: 25 | I: 22 | L: 13,5 | N: 56 | M12x45 | 1/2"x1"3/4 | 4187 | 1,21 |
| 207 | 2" | AFS10890G | Dimensions: A: 2" GAS | B: 51 | C: 77,77 | D: 110 | E: 42,88 | F: 110 | G: 42 | H: 25 | I: 28 | L: 13,5 | N: 65 | M12x45 | 1/2"x1"3/4 | 4225 | 2,06 |
| 207 | 2" | AFS10890G112 | Dimensions: A: 1"1/2 GAS | B: 51 | C: 77,77 | D: 110 | E: 42,88 | F: 110 | G: 42 | H: 25 | I: 25 | L: 13,5 | N: 65 | M12x45 | 1/2"x1"3/4 | 4225 | 2,10 |
| 414 | 1/2" | AFS40190G012 | Dimensions: A: 1/2" GAS | B: 13 | C: 40,49 | D: 54 | E: 18,24 | F: 60 | G: 20 | H: 16 | I: 19 | L: 9 | N: 37 | M8x30 | 5/16"x1"1/4 | 4075 | 0,28 |
| 414 | 1/2" | AFS40190G038 | Dimensions: A: 3/8" GAS | B: 13 | C: 40,49 | D: 54 | E: 18,24 | F: 60 | G: 20 | H: 16 | I: 19 | L: 9 | N: 37 | M8x30 | 5/16"x1"1/4 | 4075 | 0,29 |
| 414 | 3/4" | AFS40290G | Dimensions: A: 3/4" GAS | B: 19 | C: 50,80 | D: 70 | E: 23,80 | F: 70 | G: 28 | H: 19 | I: 20 | L: 11 | N: 43 | M10x35 | 3/8"x1"1/2 | 4100 | 0,69 |
| 414 | 3/4" | AFS40290G012 | Dimensions: A: 1/2" GAS | B: 19 | C: 50,80 | D: 70 | E: 23,80 | F: 70 | G: 28 | H: 19 | I: 19 | L: 11 | N: 43 | M10x35 | 3/8"x1"1/2 | 4100 | 0,72 |
| 414 | 1" | AFS40390G | Dimensions: A: 1" GAS | B: 25 | C: 57,15 | D: 79 | E: 27,76 | F: 85 | G: 34 | H: 21 | I: 22 | L: 13 | N: 51 | M12x45 | 7/16"x1"3/4 | 4131 | 1,11 |
| 414 | 1" | AFS40390G034 | Dimensions: A: 3/4" GAS | B: 25 | C: 57,15 | D: 79 | E: 27,76 | F: 85 | G: 34 | H: 21 | I: 20 | L: 13 | N: 51 | M12x45 | 7/16"x1"3/4 | 4131 | 1,15 |
| 414 | 1"1/4 | AFS40490G | Dimensions: A: 1"1/4 GAS | B: 32 | C: 66,68 | D: 93 | E: 31,75 | F: 95 | G: 38 | H: 25 | I: 25 | L: 15 | N: 56 | M14x45 | - | 4150 | 1,45 |
| 414 | 1"1/4 | AFS40490GL13 | Dimensions: A: 1"1/4 GAS | B: 32 | C: 66,68 | D: 93 | E: 31,75 | F: 95 | G: 38 | H: 25 | I: 25 | L: 13,5 | N: 56 | M12x45 | 1/2"x1"3/4 | 4150 | 1,45 |
| 414 | 1"1/4 | AFS40490G100 | Dimensions: A: 1" GAS | B: 32 | C: 66,68 | D: 93 | E: 31,75 | F: 95 | G: 38 | H: 25 | I: 22 | L: 15 | N: 56 | M14x45 | - | 4150 | 1,50 |
| 414 | 1"1/4 | AFS40490G100L13 | Dimensions: A: 1" GAS | B: 32 | C: 66,68 | D: 93 | E: 31,75 | F: 95 | G: 38 | H: 25 | I: 22 | L: 13,5 | N: 56 | M12x45 | 1/2"x1"3/4 | 4150 | 1,50 |
| 414 | 1"1/2 | AFS40590G | Dimensions: A: 1"1/2 GAS | B: 38 | C: 79,38 | D: 110 | E: 36,50 | F: 110 | G: 42 | H: 25 | I: 28 | L: 17 | N: 65 | M16x55 | 5/8"x2"1/4 | 4187 | 2,75 |
| 414 | 1"1/2 | AFS40590G114 | Dimensions: A: 1"1/4 GAS | B: 38 | C: 79,38 | D: 110 | E: 36,50 | F: 110 | G: 42 | H: 25 | I: 25 | L: 17 | N: 65 | M16x55 | 5/8"x2"1/4 | 4187 | 2,80 |
| 414 | 2" | AFS40690G | Dimensions: A: 2" GAS | B: 51 | C: 96,82 | D: 134 | E: 44,45 | F: 132 | G: 45 | H: 35 | I: 33 | L: 21 | N: 75 | M20x70 | 3/4"x2"3/4 | 4225 | 3,95 |
| 414 | 2" | AFS40690G112 | Dimensions: A: 1"1/2 GAS | B: 51 | C: 96,82 | D: 134 | E: 44,45 | F: 132 | G: 45 | H: 35 | I: 28 | L: 21 | N: 75 | M20x70 | 3/4"x2"3/4 | 4225 | 4,40 |
