Available Variants
13 variants available

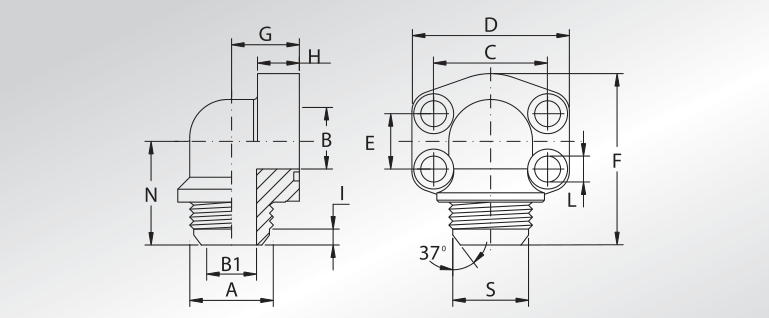

| Max Pressure | Size (inch) | Article No | Description | Screws (Metric) | Screws (UNC) | OR Type | Weight |
|---|---|---|---|---|---|---|---|
| 345 | 1/2" | AFS08090J034 | Dimensions: A: 3/4" - 16UNF | B: 13 | C: 38,10 | D: 54 | E: 17,48 | F: 60 | G: 20 | H: 16 | I: 6,4 | L: 9 | N: 37 | S: 10,82 || Other: col_5: 9,90 | M8x30 | 5/16"x1"1/4 | 4075 | 0,25 |
| 345 | 1/2" | AFS08090J078 | Dimensions: A: 7/8" - 14UN | B: 13 | C: 38,10 | D: 54 | E: 17,48 | F: 60 | G: 20 | H: 16 | I: 6,8 | L: 9 | N: 37 | S: 13,69 || Other: col_5: 12,30 | M8x30 | 5/16"x1"1/4 | 4075 | 0,25 |
| 345 | 3/4" | AFS10090J | Dimensions: A: 1"1/16 - 12UN | B: 19 | C: 47,63 | D: 65 | E: 22,23 | F: 64 | G: 24 | H: 18 | I: 8,0 | L: 11 | N: 39 | S: 16,87 || Other: col_5: 15,50 | M10x35 | 3/8"x1"1/2 | 4100 | 0,38 |
| 345 | 1" | AFS10290J | Dimensions: A: 1"5/16 - 12UN | B: 25 | C: 52,37 | D: 70 | E: 26,19 | F: 71 | G: 28 | H: 19 | I: 8,0 | L: 11 | N: 44 | S: 23,19 || Other: col_5: 21,50 | M10x35 | 3/8"x1"1/2 | 4131 | 0,49 |
| 276 | 1"1/4 | AFS10490J | Dimensions: A: 1"5/8 - 12UN | B: 32 | C: 58,72 | D: 79 | E: 30,18 | F: 86 | G: 34 | H: 21 | I: 9,3 | L: 11,5 | N: 52 | S: 29,13 || Other: col_5: 27,50 | M10x40 | 7/16"x1"3/4 | 4150 | 0,77 |
| 207 | 1"1/2 | AFS10690J | Dimensions: A: 1"7/8 - 12UN | B: 38 | C: 69,85 | D: 93 | E: 35,71 | F: 96 | G: 38 | H: 25 | I: 9,6 | L: 13,5 | N: 57 | S: 35,08 || Other: col_5: 33,00 | M12x45 | 1/2"x1"3/4 | 4187 | 1,10 |
| 414 | 1/2" | AFS40190J034 | Dimensions: A: 3/4" - 16UNF | B: 13 | C: 40,49 | D: 54 | E: 18,24 | F: 60 | G: 20 | H: 16 | I: 6,4 | L: 9 | N: 37 | S: 10,82 || Other: col_5: 9,90 | M8x30 | 5/16"x1"1/4 | 4075 | 0,28 |
| 414 | 1/2" | AFS40190J078 | Dimensions: A: 7/8" - 14UN | B: 13 | C: 40,49 | D: 54 | E: 18,24 | F: 60 | G: 20 | H: 16 | I: 6,8 | L: 9 | N: 37 | S: 13,69 || Other: col_5: 12,30 | M8x30 | 5/16"x1"1/4 | 4075 | 0,28 |
| 414 | 3/4" | AFS40290J | Dimensions: A: 1"1/16 - 12UN | B: 19 | C: 50,80 | D: 70 | E: 23,80 | F: 71 | G: 28 | H: 19 | I: 8,0 | L: 11 | N: 44 | S: 16,87 || Other: col_5: 15,50 | M10x40 | 3/8"x1"1/2 | 4100 | 0,69 |
| 414 | 1" | AFS40390J | Dimensions: A: 1"5/16 - 12UN | B: 25 | C: 57,15 | D: 79 | E: 27,76 | F: 85 | G: 34 | H: 21 | I: 8,0 | L: 13 | N: 51 | S: 23,19 || Other: col_5: 21,50 | M12x45 | 7/16"x1"3/4 | 4131 | 1,11 |
| 414 | 1"1/4 | AFS40490J | Dimensions: A: 1"5/8 - 12UN | B: 32 | C: 66,68 | D: 93 | E: 31,75 | F: 96 | G: 38 | H: 25 | I: 9,3 | L: 15 | N: 57 | S: 29,13 || Other: col_5: 27,50 | M14x45 | - | 4150 | 1,45 |
| 414 | 1"1/4 | AFS40490JL13 | Dimensions: A: 1"5/8 - 12UN | B: 32 | C: 66,68 | D: 93 | E: 31,75 | F: 96 | G: 38 | H: 25 | I: 9,3 | L: 13,5 | N: 57 | S: 29,13 || Other: col_5: 27,50 | M12x45 | 1/2"x1"3/4 | 4150 | 1,45 |
| 414 | 1"1/2 | AFS40590J | Dimensions: A: 1"7/8 - 12UN | B: 38 | C: 79,38 | D: 110 | E: 36,50 | F: 111 | G: 42 | H: 25 | I: 9,6 | L: 17 | N: 66 | S: 35,08 || Other: col_5: 33,00 | M16x55 | 5/8"x2"1/4 | 4187 | 2,75 |
