Available Variants
13 variants available

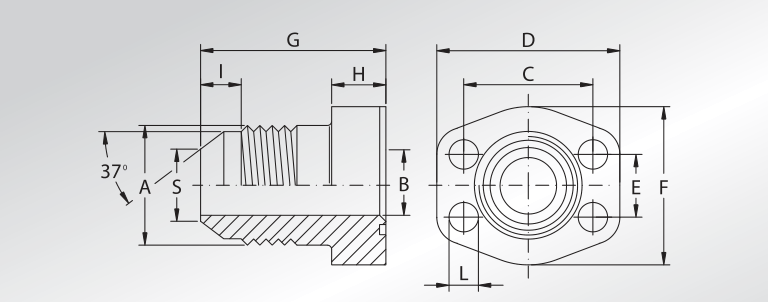

| Max Pressure | Size (inch) | Article No | Description | Screws (Metric) | Screws (UNC) | OR Type | Weight |
|---|---|---|---|---|---|---|---|
| 345 | 1/2" | AFS080J034 | Dimensions: A: 3/4" - 16UNF | B: 9,90 | C: 38,10 | D: 54 | E: 17,48 | F: 46 | G: 52 | H: 13 | I: 6,4 | L: 9 | S: 10,82 | M8x30 | 5/16"x1"1/4 | 4075 | 0,25 |
| 345 | 1/2" | AFS080J078 | Dimensions: A: 7/8" - 14UN | B: 12,30 | C: 38,10 | D: 54 | E: 17,48 | F: 46 | G: 52 | H: 13 | I: 6,8 | L: 9 | S: 13,69 | M8x30 | 5/16"x1"1/4 | 4075 | 0,30 |
| 345 | 3/4" | AFS100J | Dimensions: A: 1"1/16 - 12UN | B: 15,50 | C: 47,63 | D: 65 | E: 22,23 | F: 50 | G: 60 | H: 14 | I: 8,0 | S: 16,87 || Other: col_13: 11,5 | M10x35 | 3/8"x1"1/2 | 4100 | 0,36 |
| 345 | 1" | AFS102J | Dimensions: A: 1"5/16 - 12UN | B: 21,50 | C: 52,37 | D: 70 | E: 26,19 | F: 55 | G: 63 | H: 16 | I: 8,0 | S: 23,19 || Other: col_13: 11,5 | M10x35 | 3/8"x1"1/2 | 4131 | 0,50 |
| 276 | 1"1/4 | AFS104J | Dimensions: A: 1"5/8 - 12UN | B: 27,50 | C: 58,72 | D: 79 | E: 30,18 | F: 68 | G: 65 | H: 14 | I: 9,3 | S: 29,13 || Other: col_13: 11,5 | M10x35 | 7/16"x1"3/4 | 4150 | 0,71 |
| 207 | 1"1/2 | AFS106J | Dimensions: A: 1"7/8 - 12UN | B: 33,00 | C: 69,85 | D: 94 | E: 35,71 | F: 78 | G: 70 | H: 16 | I: 9,6 | S: 35,08 || Other: col_13: 13,5 | M12x35 | 1/2"x1"3/4 | 4187 | 1,02 |
| 414 | 1/2" | AFS401J034 | Dimensions: A: 3/4" - 16UNF | B: 9,90 | C: 40,49 | D: 56 | E: 18,24 | F: 48 | G: 60 | H: 16 | I: 6,4 | L: 9 | S: 10,82 | M8x30 | 5/16"x1"1/4 | 4075 | 0,33 |
| 414 | 1/2" | AFS401J078 | Dimensions: A: 7/8" - 14UN | B: 12,30 | C: 40,49 | D: 56 | E: 18,24 | F: 48 | G: 60 | H: 16 | I: 6,8 | L: 9 | S: 13,69 | M8x30 | 5/16"x1"1/4 | 4075 | 0,40 |
| 414 | 3/4" | AFS402J | Dimensions: A: 1"1/16 - 12UN | B: 15,50 | C: 50,80 | D: 71 | E: 23,80 | F: 60 | G: 73 | H: 19 | I: 8,0 | S: 16,87 || Other: col_13: 11,5 | M10x40 | 3/8"x1"1/2 | 4100 | 0,68 |
| 414 | 1" | AFS403J | Dimensions: A: 1"5/16 - 12UN | B: 21,50 | C: 57,15 | D: 81 | E: 27,76 | F: 70 | G: 82 | H: 24 | I: 8,0 | L: 13 | S: 23,19 | M12x45 | 7/16"x1"3/4 | 4131 | 1,03 |
| 414 | 1"1/4 | AFS404J | Dimensions: A: 1"5/8 - 12UN | B: 27,50 | C: 66,68 | D: 95 | E: 31,75 | F: 78 | G: 92 | H: 27 | I: 9,3 | L: 15 | S: 29,13 | M14x45 | - | 4150 | 1,66 |
| 414 | 1"1/4 | AFS404JL13 | Dimensions: A: 1"5/8 - 12UN | B: 27,50 | C: 66,68 | D: 95 | E: 31,75 | F: 78 | G: 92 | H: 27 | I: 9,3 | S: 29,13 || Other: col_13: 13,5 | M12x45 | 1/2"x1"3/4 | 4150 | 1,66 |
| 414 | 1"1/2 | AFS405J | Dimensions: A: 1"7/8 - 12UN | B: 33,00 | C: 79,38 | D: 113 | E: 36,50 | F: 95 | G: 96 | H: 30 | I: 9,6 | L: 17 | S: 35,08 | M16x55 | 5/8"x2"1/4 | 4187 | 2,23 |
